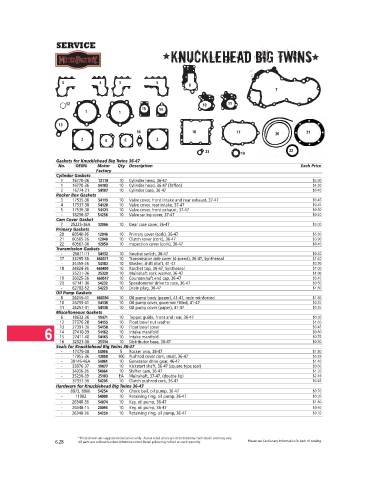

Page 498 - Custom Chrome Catalog
P. 498
SERVICE
Knucklehead Big Twins
3 4 3 5
8
7
12 10 11
15 14
1 1
13
16 18 17 20 21
2 6 6 2
23 22
19
Gaskets for Knucklehead Big Twins 36-47
No. OEM# Motor Qty Description Each Price
Factory
Cylinder Gaskets
1 16770-36 12110 10 Cylinder head, 36-47 $2.90
1 16770-36 54103 10 Cylinder head, 36-47 (Teflon) $4.30
2 16774-21 54107 10 Cylinder base, 36-47 $0.40
Rocker Box Gaskets
3 17535-38 54119 10 Valve cover, front intake and rear exhaust, 37-47 $0.45
4 17537-38 54120 10 Valve cover, rear intake, 37-47 $0.45
5 17539-38 54121 10 Valve cover, front exhaust, 37-47 $0.50
- 18256-37 54258 10 Valve spring cover, 37-47 $0.40
Cam Cover Gasket
7 25225-36A 12066 10 Gear case cover, 36-47 $3.00
Primary Gaskets
20 60540-36 12046 10 Primary cover (cork), 36-47 $5.30
21 60565-36 12048 10 Clutch cover (cork), 36-47 $3.90
22 60567-36 12050 10 Inspection cover (cork), 36-47 $0.40
Transmission Gaskets
- 25811-11 54132 10 Neutral switch, 36-47 $0.40
17 33295-36 660371 10 Transmission side cover (4-speed), 36-47, Syntheseal $1.40
- 34459-26 54183 10 Washer, shift shaft, 41-47 $0.70
18 34824-36 660400 10 Ratchet top, 36-47, Syntheseal $1.00
- 35231-36 25320 10 Mainshaft cork washer, 36-47 $1.00
19 36025-36 660517 10 Countershaft end cap. 36-47 $0.45
23 67141-36 54232 10 Speedometer drive to case, 36-47 $0.50
- 62702-52 54223 10 Drain plug, 36-47 $1.50
Oil Pump Gaskets
8 26245-41 660394 10 Oil pump body (paper), 41-47, resin reinforced $1.50
10 26255-41 54136 10 Oil pump cover, governor fitted, 41-47 $0.35
11 26257-41 54138 10 Oil pump cover (paper), 41-47 $0.35
Miscellaneous Gaskets
6 18632-36 19471 10 Tappet guide, front and rear, 36-47 $0.30
12 27376-28 54155 10 Float bowl nut washer $1.60
13 27391-36 54158 10 Float bowl cover $0.45
6 14 27410-39 54162 10 Intake manifold $0.80
54165
10
15
Intake manifold
27411-40
$0.75
16 32521-36 25314 10 Distributor base, 36-47 $0.30
Seals for Knucklehead Big Twins 36-47
- 17475-38 54056 5 Rocker arm, 38-47 $1.80
- 17955-36 12058 100 Pushrod cover cork, small, 36-47 $0.59
- 30145-46A 54061 10 Generator drive gear, 46-47 $1.40
- 33076-37 19077 10 Kickstart shaft, 36-47 (square type seal) $0.60
- 34036-36 54064 10 Shifter cam, 36-47 $1.20
- 35230-39 25103 EA Mainshaft, 37-47, (double lip) $2.49
- 37337-36 54205 10 Clutch pushrod cork, 36-47 $0.45
Hardware for Knucklehead Big Twins 36-47
- 8873, 8866 54254 10 Check ball, oil pump, 36-47 $0.70
- 11002 54000 10 Retaining ring, oil pump, 36-47 $0.20
- 26340-36 54074 10 Key, oil pump, 36-47 $1.80
- 26348-15 20095 10 Key, oil pump, 36-47 $0.60
- 26348-36 54250 10 Retaining ring, oil pump, 36-47 $0.70
M12110
